Description
Lancia Flaminia, Flavia, Fulvia thermostat
| Model: | Thermostat Flaminia, Flavia, Fulvia |
|---|

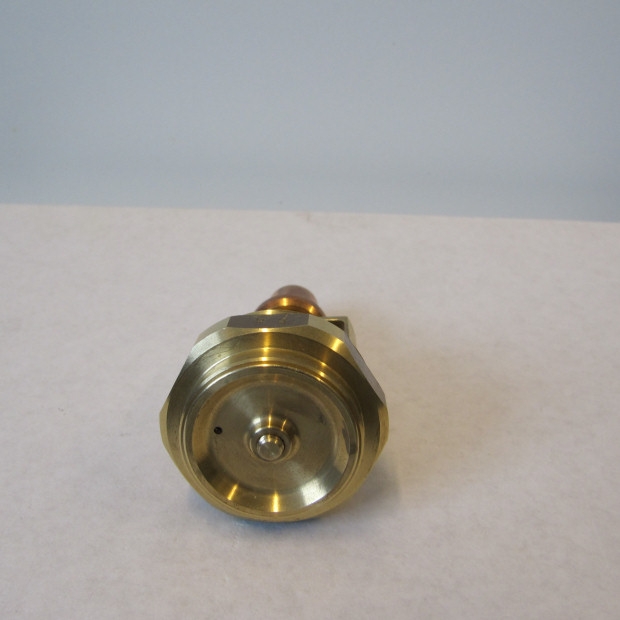

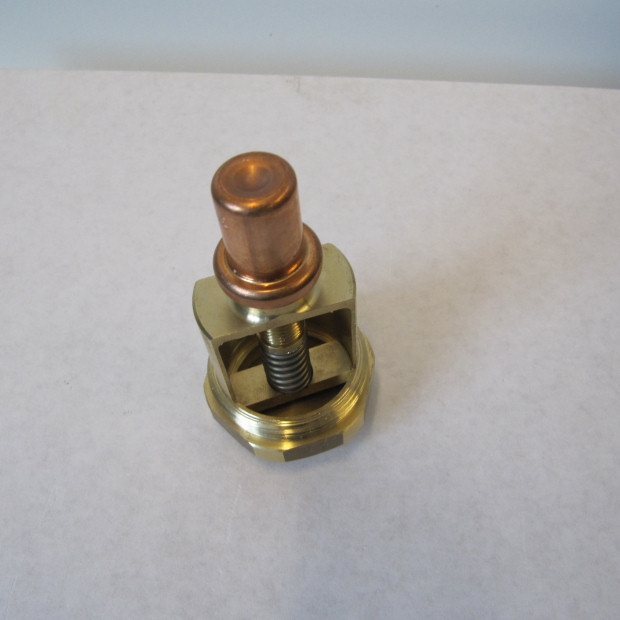

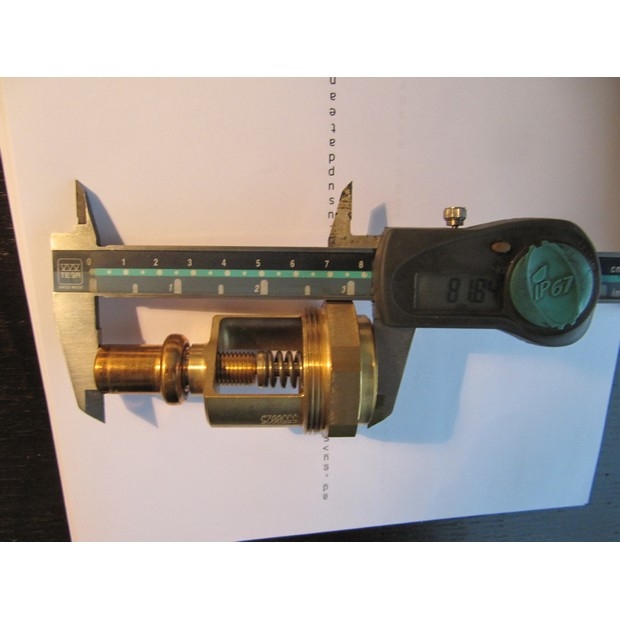

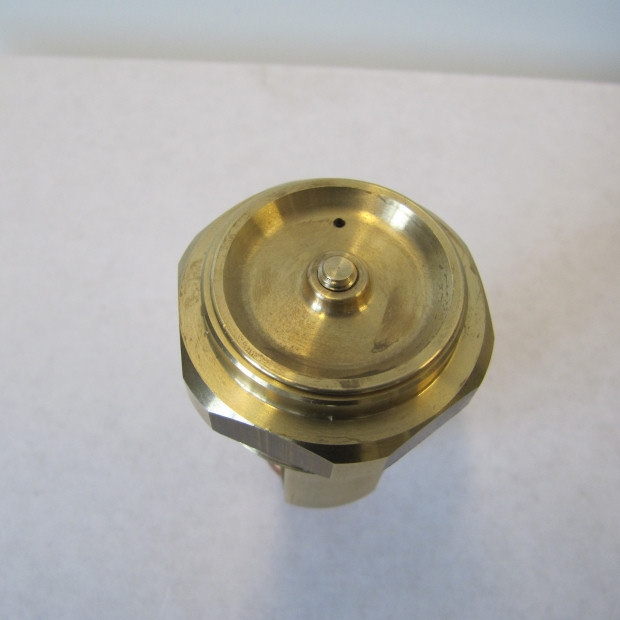

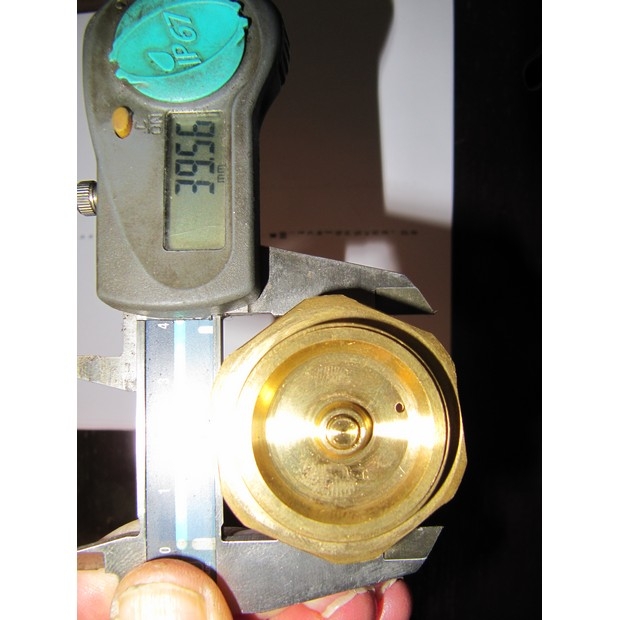

We developed a brand new first class thermostat. Suitable for all Lancia types Flaminia, Flavia and Fulvia. This top quality product is manufactured in Germany.
Our new thermostat fits in the original sockets of all Flaminia engines (2.5 l types and 2.8 l types, all carburetor versions) plus Flavia & early Fulvias, too.
Opening temperatures: either 68°C to 77°C (set point 73°C) summer or 76°C-88°C (set point 83°C) winter. The temperature sensor is a wax type element as used in nowadays cars, but only the sensor itself, the other components are made individually for the above engines.
| old part | new part | improvement | |
| Flap cross sectional area | 6,61 cm² | 8,04 cm² | +22% |
| Opening gap surface at 7 mm stroke | 6,38 cm² | 7,04 cm² | +10% |
| Cross sectional area at sensor end | 4,87 cm² | 8,41 cm² | +72% |
The bottle neck of the old thermostat is the small cross sectional area at the sensor end, this is drastically reduced by the new design (increased throughput of 70%).
As a result, the new element has much lower pressure drop and in combination with the
bigger cross sectional areas leads to easier and higher throughput of cooling water.
Advantages
- Much better cooling liquid flow (approx. 70% compared to the old Lancia thermostats)
- Less H20 resistance when open
- Special alloy (messing-magnesium)
- Not possible to corrode onto the aluminum body
- 100% messing quality

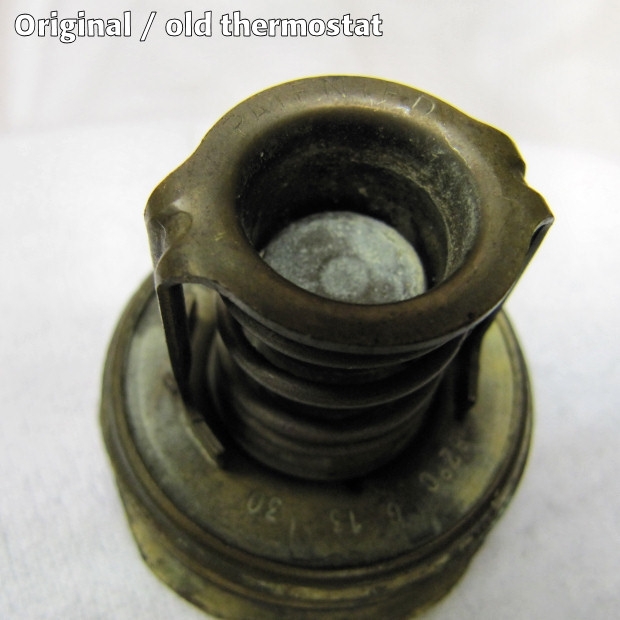

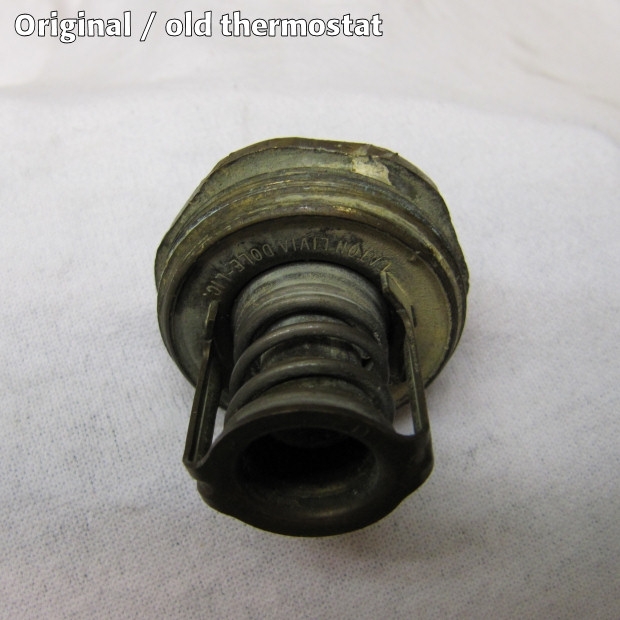

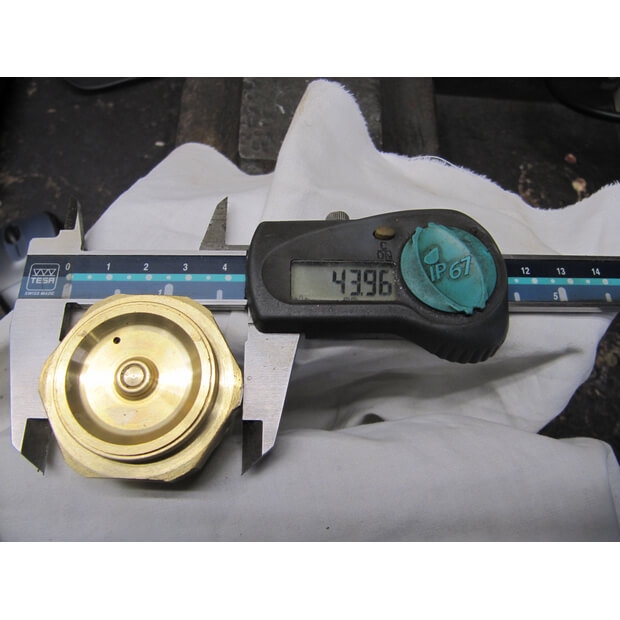

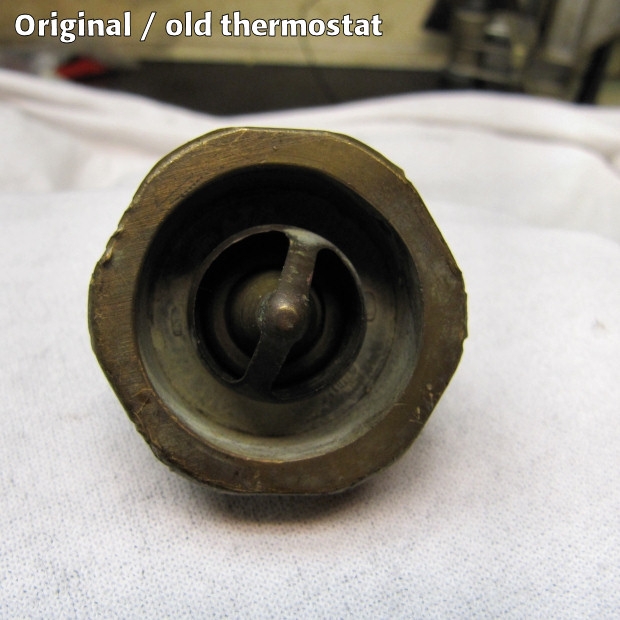

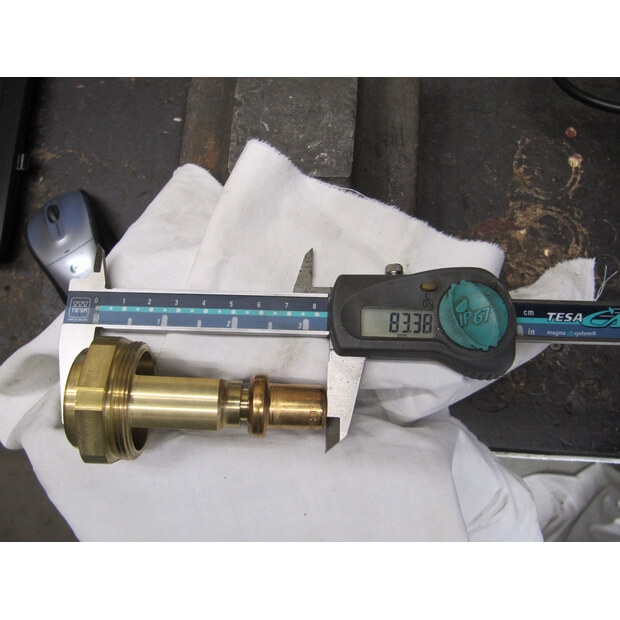

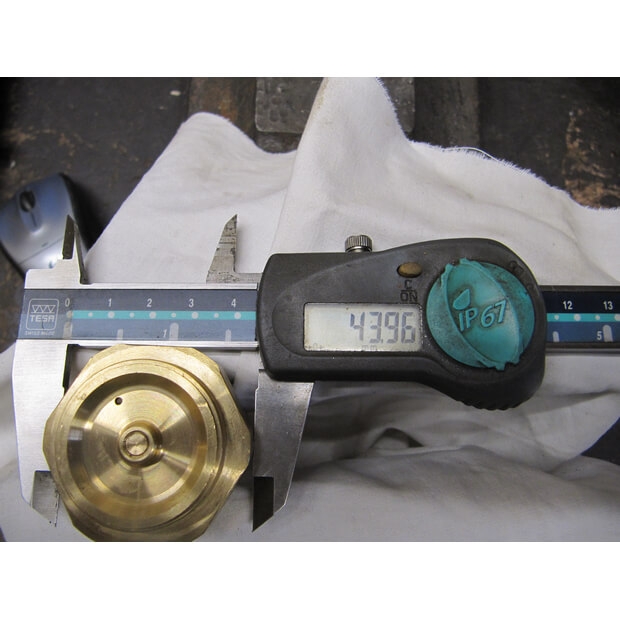

On this page you find 3 photos of the old thermostat so you can see the difference.
More info
Price(s) available upon request.
